Orkney Pilothouse 20
Pilothouse 20
A true classic
IntroductionGallerySpecificationEngines
Brochure Brochure
Enquire

The Pilothouse 20 is the smallest wheelhouse model in the Valiant range.

Offering a safe and secure, lockable wheelhouse providing ultimate 'year round' protection from the elements and commanding views from both the Helm and Co-pilot seat.

Standard Boat price (ex engine)
£45,816.00 Including VAT
Boat & 80hp engine package
£58,272.00 Including VAT
Get in touch
New, Pre-owned and Technical Boat Sales
Call:+44 (0)1243 551456
Email:boatsales@orkneyboats.co.uk
Pilot House 20
Pilot House 20
Pilot House 20
Pilot House 20

The hull features a reasonably deep forefoot with fine forward sections and pronounced flare developing into a moderate V aft. The resulting shape, combined with a moderate beam/length ratio, results in a dry, comfortable ride in rough seas making the Pilothouse 20 a favourite.

A large fully moulded cockpit has safe high coamings and is self draining with useful stowage under hinged lids. Wide side decks with practical 'angled-in' toe rails and pilot style coach roof handrails make going forward to the foredeck simple and secure. The cockpit provides the perfect platform from which to fish or simply sit and relax as the world passes you by.

The Pilothouse 20 is available with a choice of 'angling'' or 'cruising' packages making her equally popular with fisherman and cruisers alike.

This model is also easily trailerable on a 2 wheel braked trailer and complies with European towing regulations.

Highlights
Icon
Icon
Icon
Icon
Lockable wheelhouse with excellent all-round visibility
Spacious self draining cockpit
Easily accessible, wide side decks and high cockpit coaming
Safe and secure cockpit with 28” interior freeboard
Spacious cabin with plenty of storage
Valiant, Deluxe and cruising packages available
Pilot House 20
Pilot House 20
Pilot House 20
Pilot House 20
Pilot House 20
Specification
LOA
19'6"
5.95m
Beam
7'10"
2.4m
Hull weight
2030 lbs
925 kg
Propulsion
Four Stroke outboard
Steering
Heavy duty non-feedback - Remote Internal helm
Max HP
Maximum 80 hp - Long shaft
Design Speed
Max design speed 23 knots / Optimum design speed 15 Knots
Performance Indicator
30 hp
12 knots
60hp
18 knots
80 hp
23 knots
Design Category
C
Max persons
7
Max load
785 kg
Manufactured in England
Solid hand layup construction
Material
Reinforced Glass fibre & Vinylester
Cockpit design
Self-draining
Trailer
Braked - Gross Capacity 1800kg
Pilot House 20

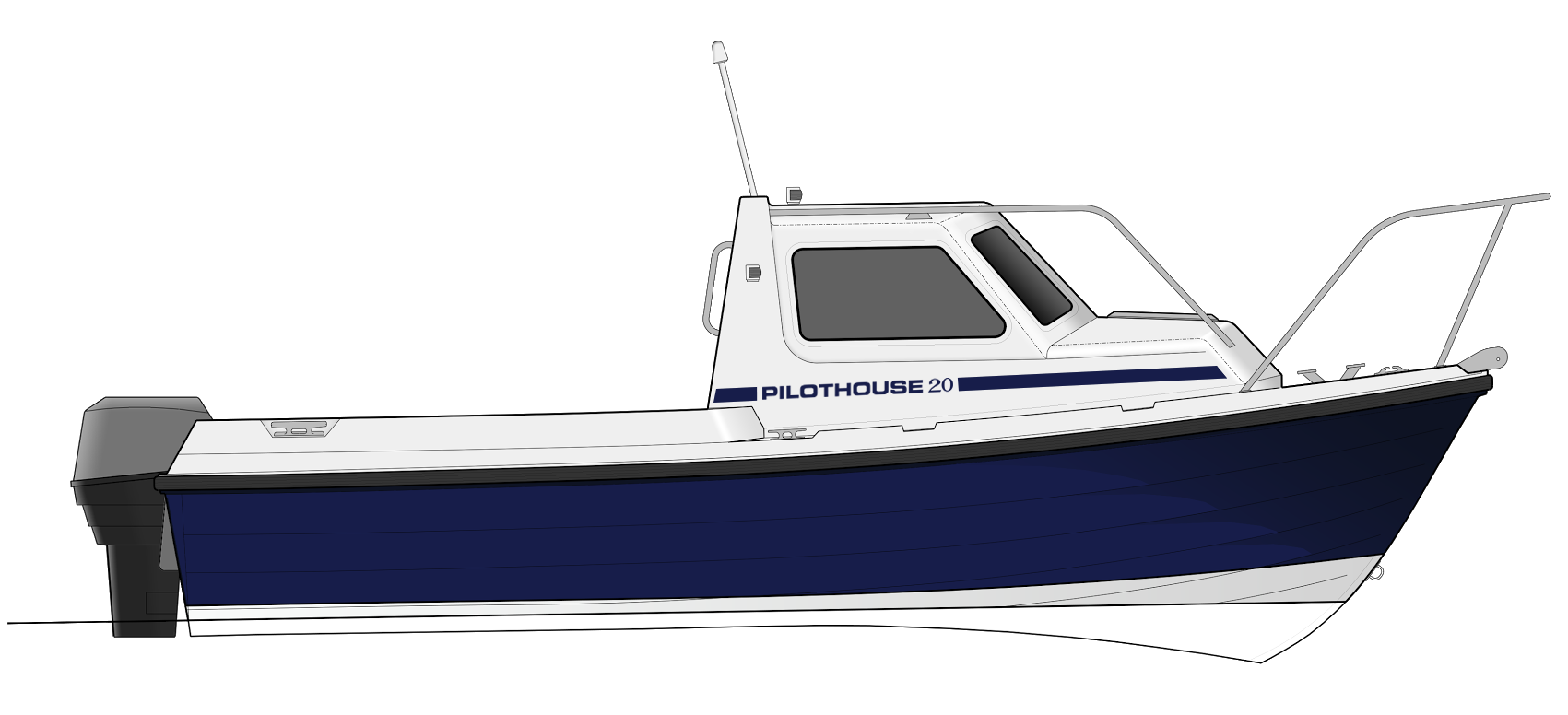

Profile View
Pilothouse 20 layout

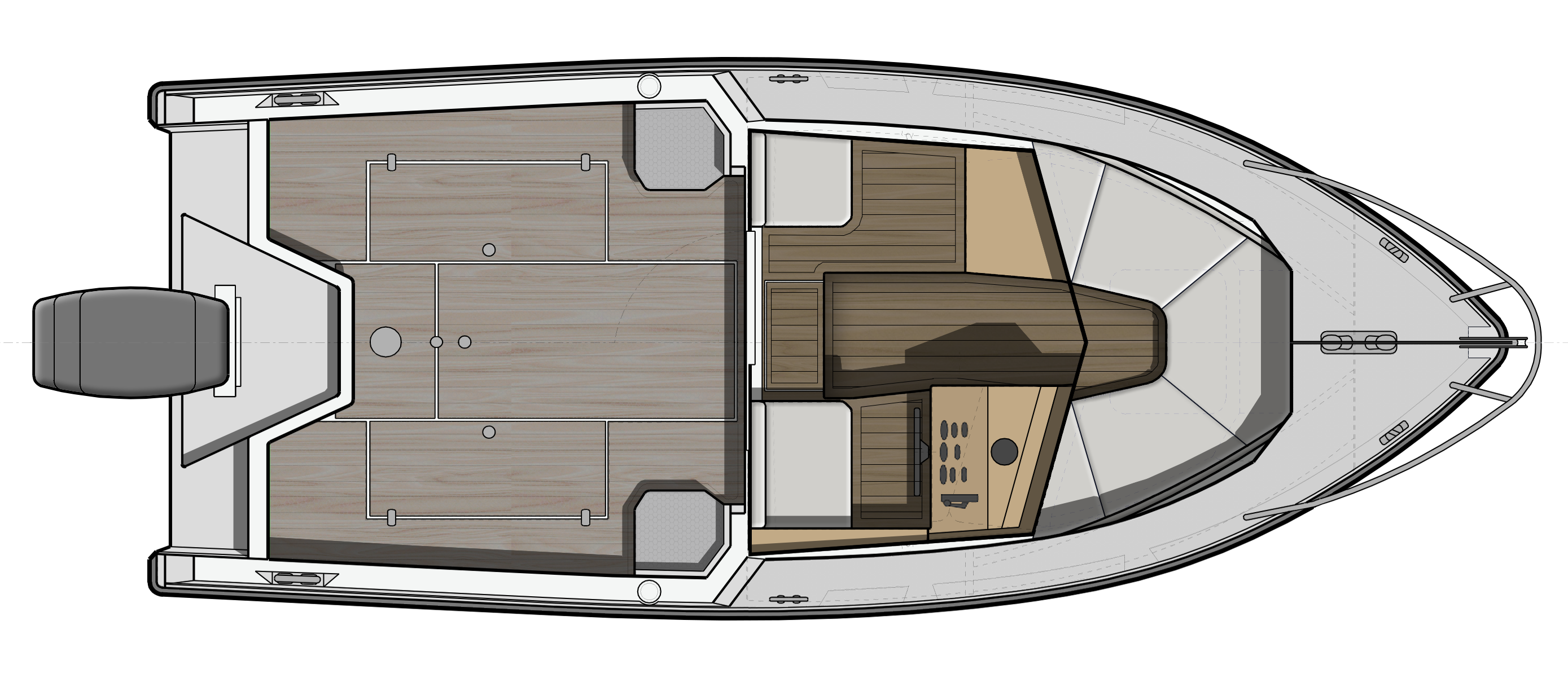

Plan View

Compatible engines

Orkney has worked closely with the engine manufactures below to ensure it is well suited in order to give the best mix in performance and economy.

#orkneyboats
Yamaha 60 hp
#orkneyboats
Yamaha 70 hp
#orkneyboats
Yamaha 80 hp
#orkneyboats
Mercury 60 hp
#orkneyboats
Mercury 80 hp
Additional Packages
Day Angler Package
Valiant Package
Cruiser Package
Deluxe Package
Day Angler Package
Orkney Boats
Orkney Boats
Portable gas stove on special GRP moulded base situated beneath co-pilot seat cushion
Red and white cabin light
Compass at helm position
12v saltwater deck wash pump in cockpit, comprising a seawater inlet, pressure pump, spray nozzle and switch
Stainless steel side rails on cockpit coamings
Stainless steel rod holders in cockpit coamings
Rod racks in cockpit
Live bait well under port side cockpit seat lid with 12v aerator pump
Valiant Package

The Pilot House Valiant package offers the highest specification available in the Orkney range with premium fittings. It combines Orkney's trademark features with that extra luxury and style for those looking to cruise a little further with the extra comforts that this boat has to offer.

#Orkneyboats
#Orkneyboats
#Orkneyboats
#Orkneyboats
Valiant Dark Navy Blue hull colour
Black framed and tinted window package including opening side windows in wheelhouse
Stainless steel pulpit
Deck Hardware package comprising stainless steel midship cleats, fenders eyes & fairleads on foredeck
Compass at helm position
Navigation lights
Cabin lighting throughout
8 gang switch panel with 12 v socket in lieu of standard
Windscreen wiper for co-pilot
Deluxe galley under forward folding co pilot seat comprising combination singler burner gas stove & stainless steel sink unit with hinged glass cover & corian style worktop
Premium upholstery with a choice of colours from selected range
Upholstered headliner panels in wheelhouse
Partial bulkhead ahead of co-pilot seat & galley
Sea toilet and holding tank to starboard ahead of helm console with privacy curtain
Teak & ebony laminate flooring with non slip surface fitted to cabin & wheelhouse sole
Light oak faced cabin table & double berth conversion with infill cushion
Water tank & 12 v water pump (cold water only)
Cruiser Package

In addition to standard specification

#Orkneyboats
#Orkneyboats
Deck hardware package comprising stainless steel mid ship cleats, fender eyes & fair leads on foredeck
Stainless steel side rails
Windscreen wiper for co pilot with separate switching
Compass at helm position
Navigation lights
Deluxe Package

If you are looking to get away for the weekend with a few of those home comforts, this package offers just that with a stylish touch of comfort

#Orkneyboats
#Orkneyboats
#Orkneyboats
#Orkneyboats
Premium upholstery with choice of colours from selected range
Deluxe galley under forward folding co pilot seat comprising combination 2 burner gas stove & stainless steel sink unit with hinged glass cover & corian style galley worktop
LED cabin interior lighting throughout
Light oak faced cabin table & double berth conversion with infill cushion
Upholstered headliner panels in wheelhouse
Teak & ebony laminate flooring with non slip surface fitted to cabin & wheelhouse sold
Partial bulkhead ahead of copilot seat & galley
Sea toilet and holding tank to starboard ahead of helm console with privacy curtain
Water tank & 12 v water pump (cold water only)
