Pilot House 25 OB
Pilothouse 25
Sleek Lines and Elegant Interior
IntroductionGallerySpecificationEngines
Brochure Brochure
Enquire

The Pilothouse 25 model adopts the same longstanding principles that Orkney are well renowned for

Including a robust seaworthy design with uncompromised sea keeping skills

Price starting from
£172,000.00 Including VAT (Outboard engine version)
Price starting from
£196,746.00 Including VAT (Diesel Sterndrive engine version)
Get in touch
New, Pre-owned and Technical Boat Sales
Call:+44 (0)1243 551456
Email:boatsales@orkneyboats.co.uk
Pilot House 25 OB
Pilot House 25 OB
Pilot House 25 OB
Pilot House 25 OB
Pilot House 25 OB
Pilot House 25 OB
Pilot House 25 OB
Pilot House 25 OB
Sleek lines and elegant interior

The Pilot House 25 model adopts the same long standing principles that Orkney Boats have been so well renowned for over the years, including a robust seaworthy design with uncompromised sea keeping skills. Whether the boat is to be used for serious passage making with twin engines or simply for coastal cruising with a single engine, the Orkney Pilot House 25 has this versatility.

Like her sister ship the Orkney Nelson 27, the new 25 has been developed to comply with RCD category B and to be capable of meeting MCA commercial craft requirements with little modification.

The wide beamed hull features convex panels with fine sections forward developing into a moderate dead rise V aft: This results in a boat that is easy to drive & stable in following seas. Even in more difficult conditions the Orkney 25 will remain comfortable and safely get you home. With a range of different engine options up to 300 hp the emphasis has, much like with previous models, been on ensuring good all round performance whilst keeping the boat economical to run.

The elegantly styled wheelhouse combines the traditional Orkney ‘work boat’ image with a sleeker, more modern profile on the water.

Highlights
Icon
Icon
Icon
Icon
Modified V hull for dry comfortable ride
Lockable wheelhouse with excellent all-round visibility
Big self draining cockpit with safe high coamings
Wide safe side decks
Spacious sea going cabin with galley and separate toilet compartment
Ample stowage space on deck & below for tender or SUP storage
RCD category B
Up to 27 Knots performance & 250 nm+ range
Single & Twin Diesel inboard Sterndrive or Petrol Outboard options available
Pilot House 25 OB
Pilot House 25 OB
Pilot House 25 OB
Pilot House 25 OB
Pilot House 25 OB
Specification
LOA
24'8"
7.6m
Beam
9'2"
2.8m
Hull weight
6834 lbs
3100 kg
Propulsion
Single or Twin Four Stroke outboard
Single Diesel Inboard
Steering
Electro hydraulic - Internal helm
Max HP
Single engine 250hp
Max HP
Twin Engine 150hp (300hp)
Design Speed
Max design speed 27 knots / Optimum design speed 17 Knots
Performance Indicator
170 hp
23 knots
220hp
25 knots
250 hp
27 knots
Design Category
B
Max persons
8
Max load
1400 kg
Manufactured in England
Solid hand layup construction
Material
Reinforced Glass fibre & Vinylester
Pilot House 25

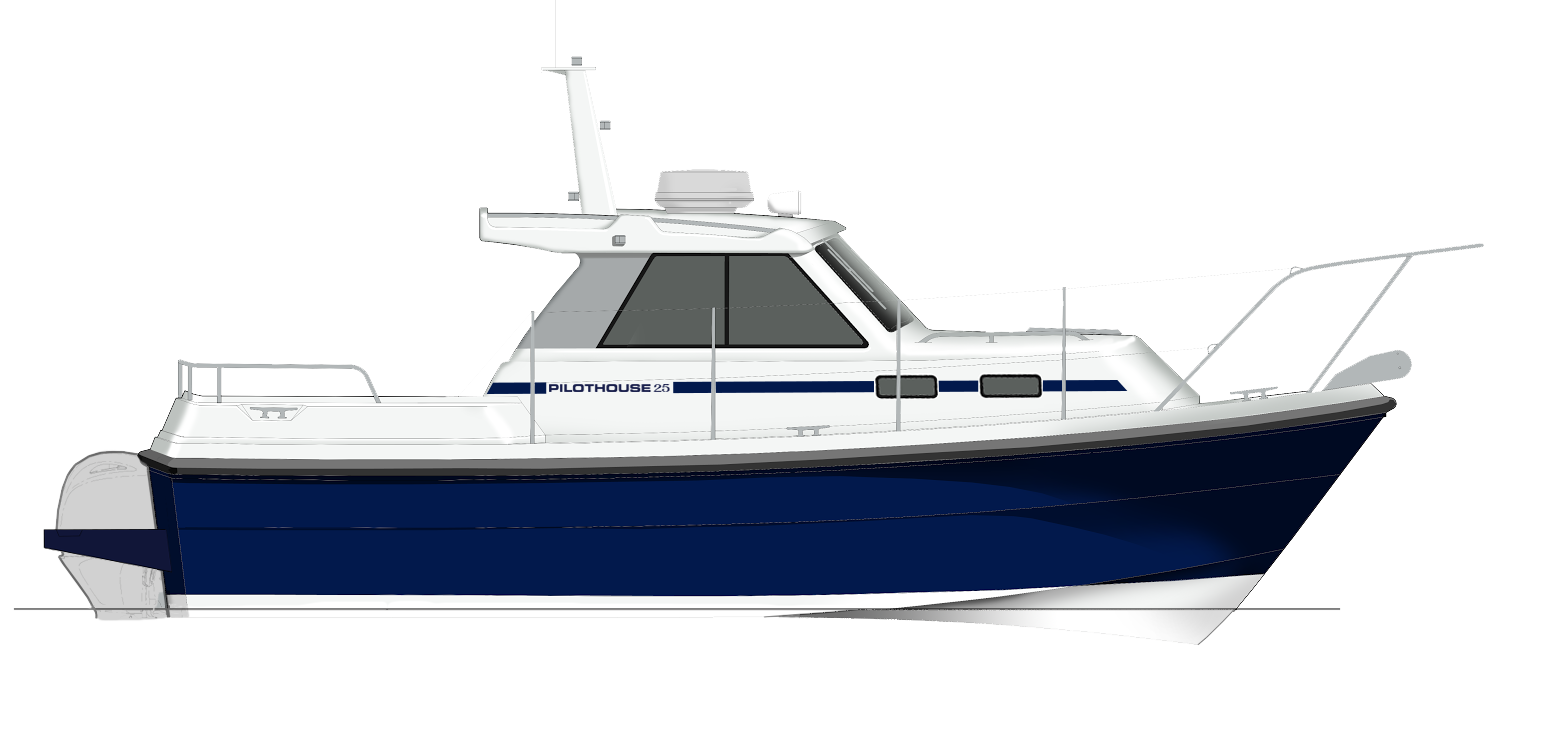

Profile View
Pilot House 25
Plan View

Compatible engines

Orkney has worked closely with the engine manufactures below to ensure it is well suited in order to give the best mix in performance and economy.

Yanmar 4lv_zt370
Yanmar 4LV
150hp - 250hp
#orkneyboats
Yamaha 200 hp
#orkneyboats
Yamaha 225 hp
#orkneyboats
Yamaha 250 hp
#orkneyboats
Mercury 150 hp
#orkneyboats
Mercury 200 hp
#orkneyboats
Mercury 225 hp
#orkneyboats
Mercury 250 hp
